Grouting Plants – SEALCRETE

DESIGN

. Ideal For Multiple Applications

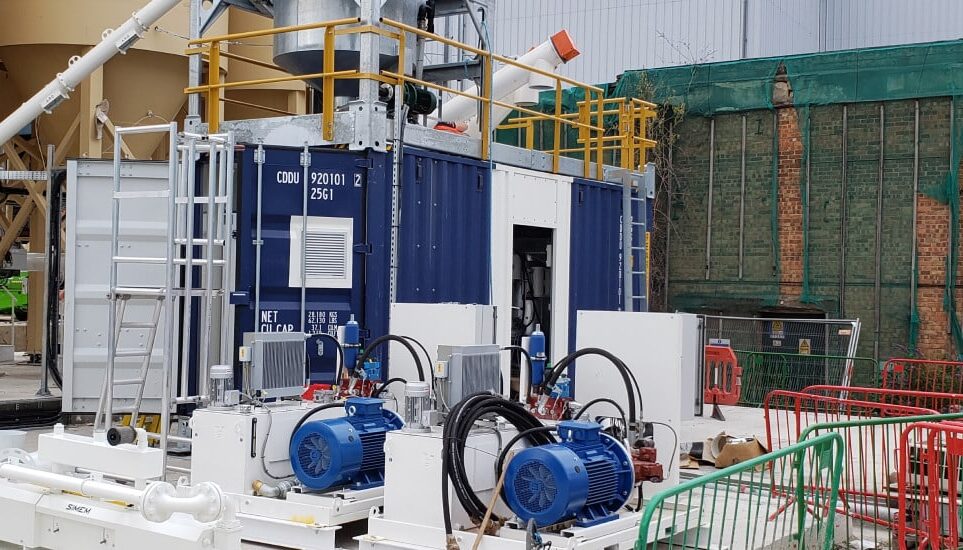

Simem’s SealCrete is a containerized series of grout plants featuring the VortiMix high-shear colloidal mixer. SealCrete’s combined contents includes: VortiMix Colloidal mixer, high pressure cleaning system, agitation tanks, pumps, and full automation. These self-contained units are optimized for easy transport, installation, and modular high-output production versatility.

SealCrete plants are versatile and most popularly used for the production of highly accurate bi-component grouts and hydrated bentonite mixes which support tunnel boring machine (TBM) operations. A SealCrete plant’s ability to produce lightweight cellular concrete, perform jet grouting, deep soil mixing, water cut-off injection, plus slurry wall production – makes it the Swiss Army Knife of solutions.

DESIGN

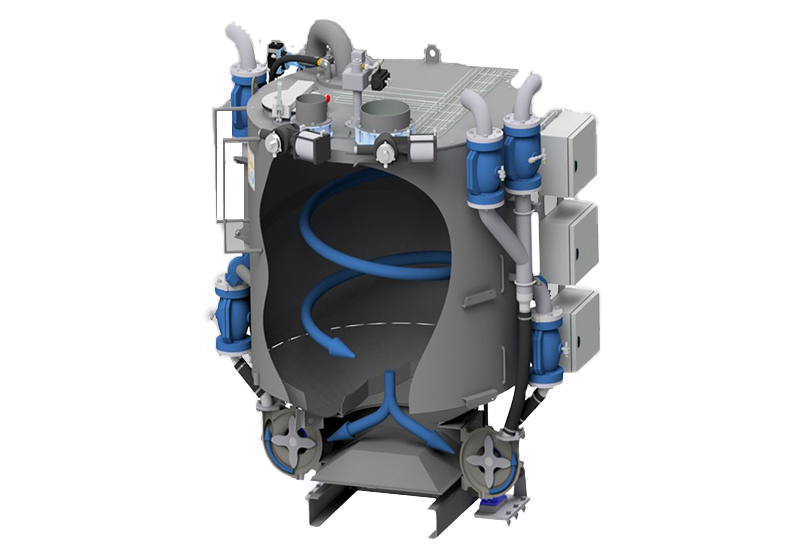

. Vortimix Colloidal Mixer

VORTIMIX can rapidly mix cementitious grouts as low as 0.6:1
water:cement ratio (by weight). Combined with the optional
paddle mixer VORTIMIX can handle grouts as low as
0.45:1 w:c ratio. Ratios can even be lower with the addition
of super-plasticizers.

DESIGN

. Auxiliary Equipment

SEALCRETE plants can be combined with a full range of auxiliary equipment, including containerized liquid storage and agitation tanks, silos, foam generators, and skid mounted pumping systems. This range of complete solutions with standard capacities of 20-65 yd³/hr. (15-50m³/hr.), brings versatility and total cost convenience to projects worldwide.

DESIGN

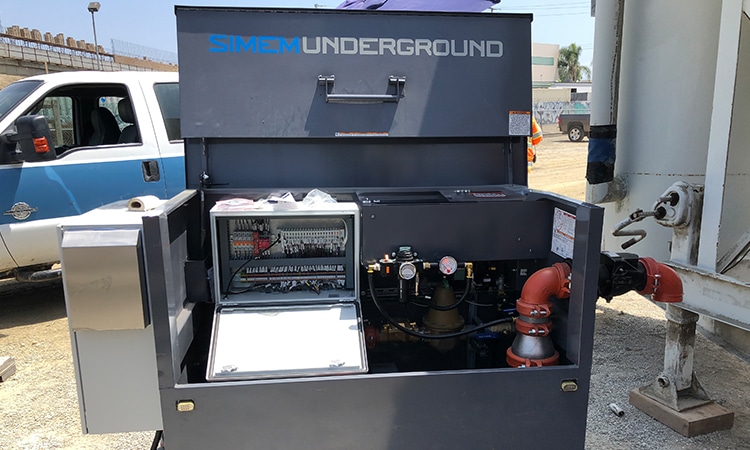

. Pumping Systems

Pumping system design must consider many factors prior to operation. Matching a pumping solution for a specific project application requires extensive knowledge to ensure a pumping system performs as intended. Simem Underground designs and assembles complete systems guaranteed to perform. System types incorporate piston, peristaltic, progressive cavity, centrifugal, and air-diaphragm pumps. System come complete with associated power control units, instrumentation, and pipe cleaning assemblies. Systems are prepared for field connection as independent components, skid-mounted, or fully containerized.

Specifications

MODEL	15	20	25	30	50
Capacity m3/h	15	20	25	30	50
Container Size	20 fr/6,1 m	20 fr/6,1 m	20 fr/6,1 m	20 fr/6,1 m	40 ft/12,2 m
Colloidal mixer	VM 1500	VM 1500	VM 1500	VM 1500	2 x VM 1500
Agitation tank l	4000	4000	4000	4000	/
