Semi Mobile Batching Plant – EAGLE

DESIGN

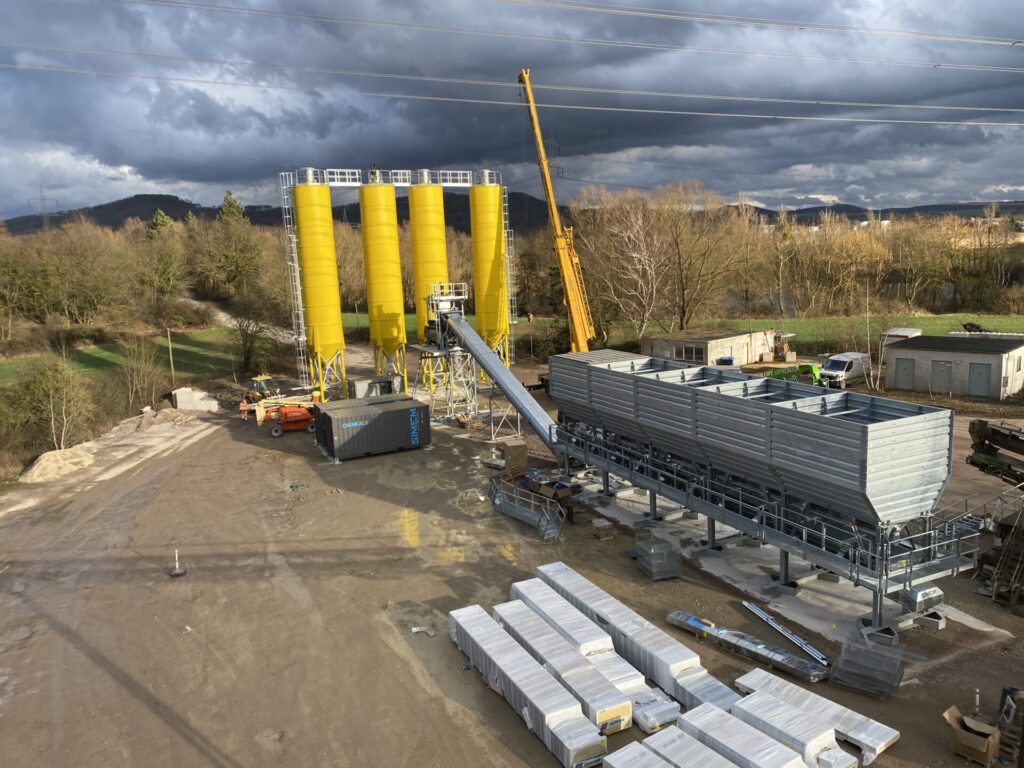

. Reliability - EAGLE

The Eagle’s excellent reliability rests in its proven engineered construction and a recognized selection of sub suppliers for pneumatic, hydraulic, electrical, drives, and belt componentry. This well-synergized representation of build materials, engineering, and assembly results in a highly reliable product, trusted by concrete producers worldwide. The Eagle plant range and available options make it an ideal fit for precast producers, heavy-civil projects, road construction.

DESIGN

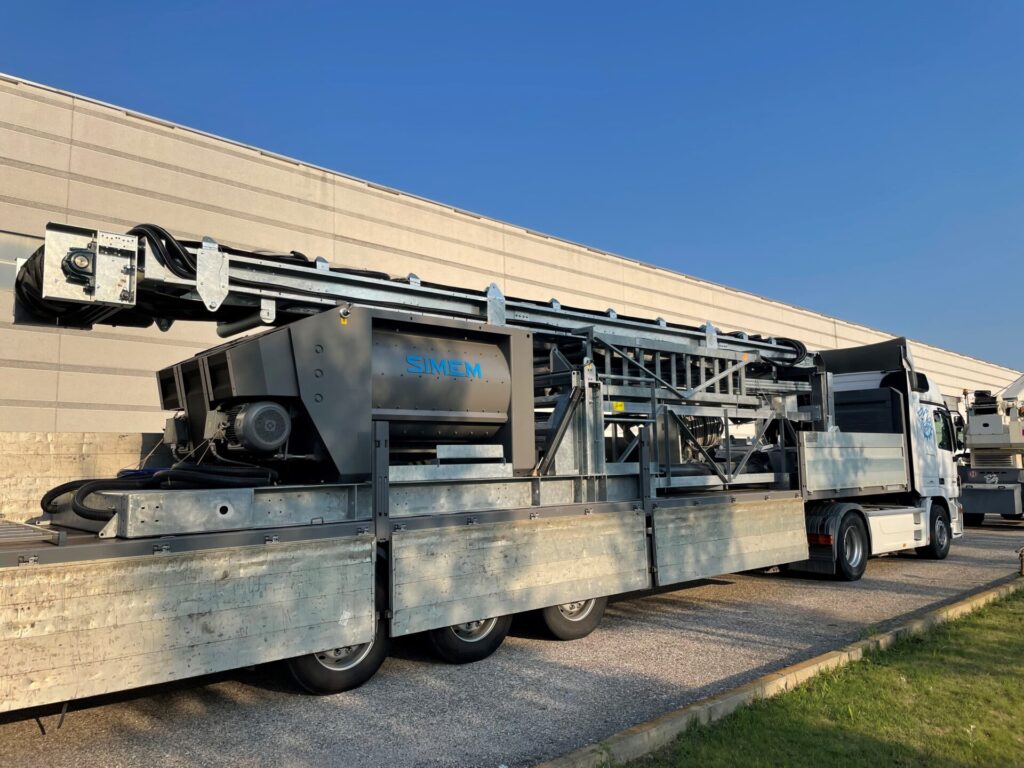

. Easy Transport - Mobile unit

All Eagle plants are pre-wired and pre-plumbed and they can be moved from site to site with standard trucks or stored into containers. All components will either fit on a truck or a shipping container for easy transportation.

DESIGN

. Twin Shaft Mixer - RHYNO

Our Rhyno mixer features two planetary type gearboxes connected to electric motors with belt drives. In addition, there is a mechanical synchronization of the two mixing shafts and labyrinth type shaft seals, with electric driven grease injection by an for continuous lubrication. As in all Simem equipment, top range materials are emplyed, Ni Hard cast iron, 600 Brinell hardness and GS500 cast iron.

DESIGN

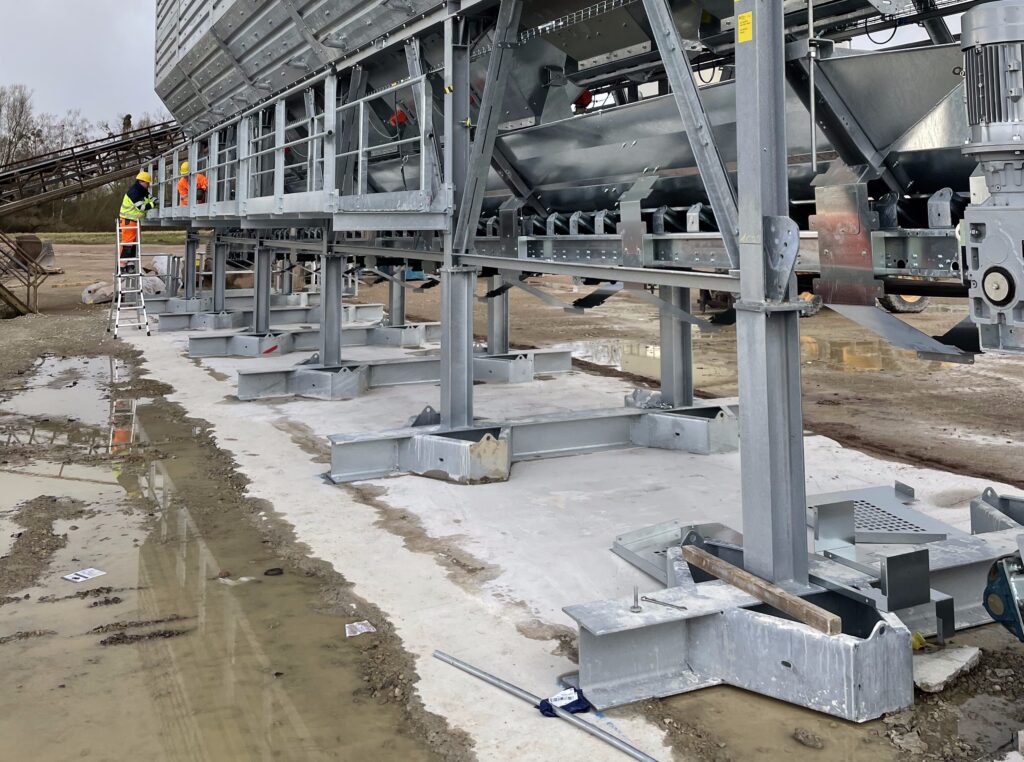

. Plant Overview - Modularity

The aggregate module is made with a modular concept and can therefore be made expandable by adding additional modules as a priority to expand the number of hoppers available and therefore the types of aggregates.
Regarding the storage capacity of aggregates, you can switch easily from the basic conﬁguration of 80 cubic meters to the conﬁguration of 180 cubic meters.

DESIGN

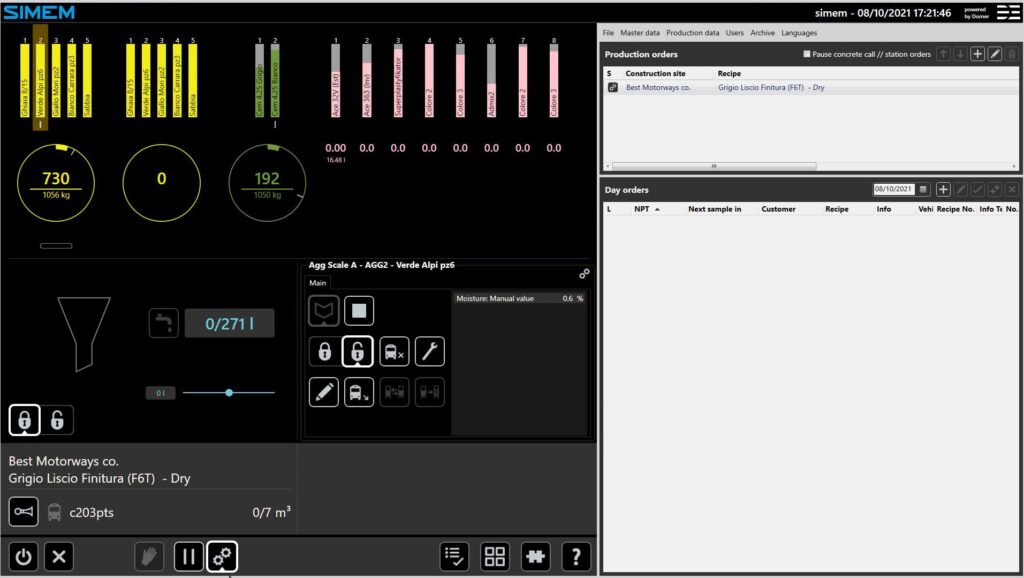

. Automation - Simem@tic 3.0

Simem@tic is an easy to use automation with unbeatable accuracy and flexibility for uninterrupted operation.

Familiar Windows operating environment with SQL database
Flexible reporting and backup functionality
Real time flow correction for each material
PC/PLC based

Specifications

MODEL	1500	2500	4000	5000	7000
Hourly Rated Capacity m3/h	50-55	70-80	90-100	130-135	160-180
Capacity per batch m3	1	1,7	2,5	3,33	4,5
Aggregate bins n°	4-6	4-6	4-6	4-6	4-5
Mixer	Rhyno 1502	Rhyno 2502	Rhyno 4002	Rhyno 5002/MSO 5001	MSO 7001
Discharge Height mts	4.20	4,20	4,20	4,20	4,20
Cement Silos n°	up to 4	up to 4	up to 4	up to 4	up to 4
