DESIGN
. Agility - FALCON
The Falcon is the agile solution for the challenges of tomorrow. The Falcon plant range and available options make it an ideal fit for precast producers, heavy-civil projects, road construction.

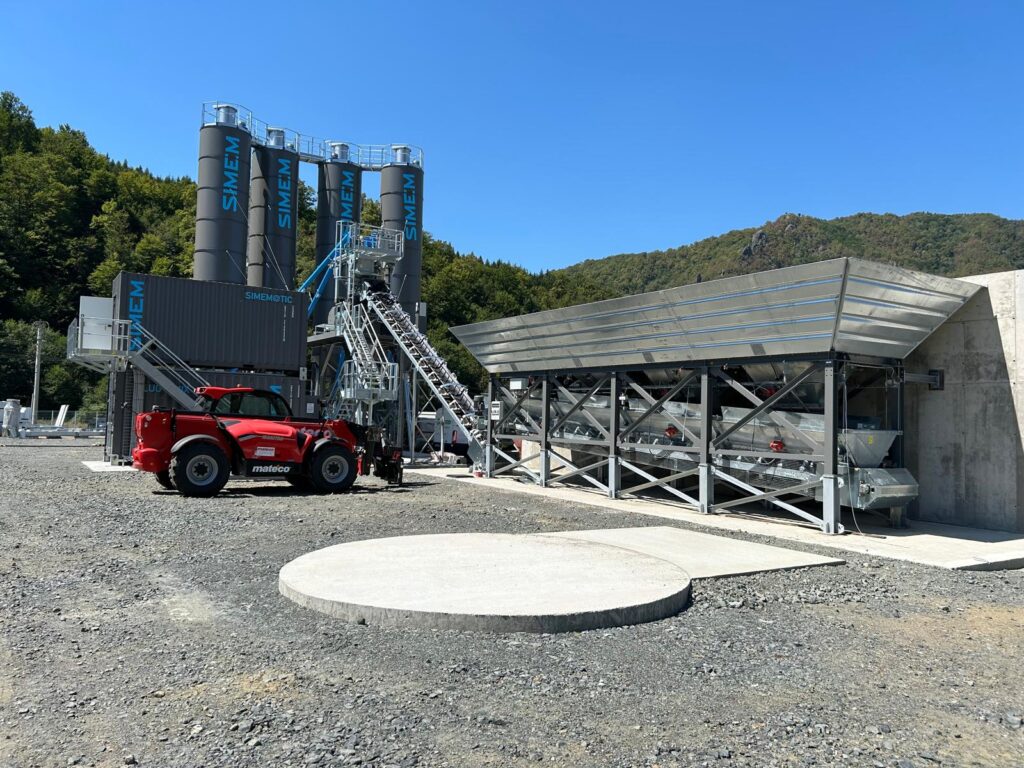

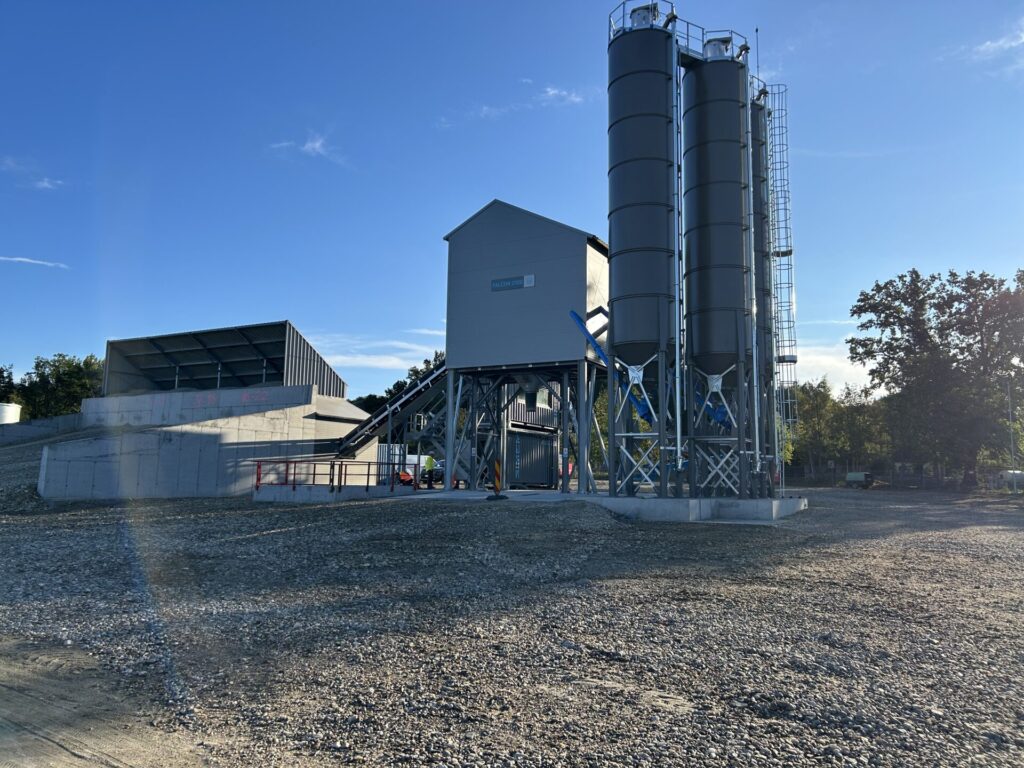

Semi Mobile Batching Plant – FALCON
DESIGN
. Easy Transport - Mobile unit
All Falcon plants can be moved from site to site with standard trucks or stored into containers. All components will either fit on a truck or a shipping container for easy transportation.
DESIGN
. Twin Shaft - MIXERS
The RHYNO and MSO series of twin shaft mixers are offered in a wide range of output capacities from 1 to 9 m3 with the ability to produce anything from conventional concrete to SCC to RCC with oversized aggregate. SIMEM mixer are known for their reliability, unquestioned durability, and output of high volume concrete production, SIMEM twin shaft mixers boast strong design, easy maintenance, and high-quality components This combination of engineered features provides the lowest possible maintenance cost per cubic meter of concrete produced.
DESIGN
. Plant Overview - Modularity
The aggregate module is made with a modular concept and can therefore be made expandable by adding additional modules as a priority to expand the number of hoppers available and therefore the types of aggregates.
Regarding the storage capacity of aggregates, you can switch easily from the basic configuration of 80 cubic meters to the configuration of 180 cubic meters.
DESIGN

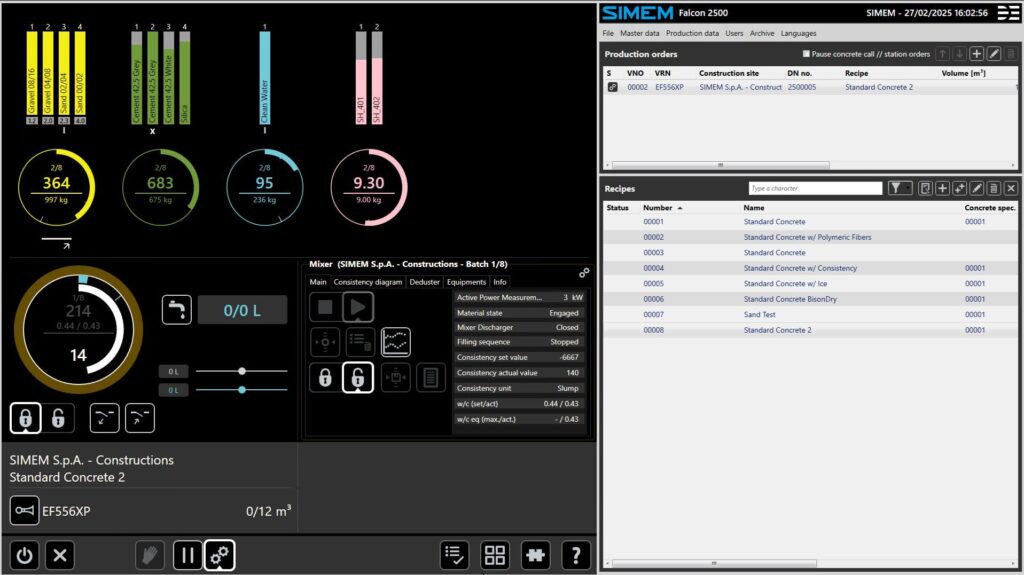

. Automation - Simem@tic 3.0
Simem@tic is an easy to use automation with unbeatable accuracy and flexibility for uninterrupted operation.
- Familiar Windows operating environment with SQL database
- Flexible reporting and backup functionality
- Real time flow correction for each material
- PC/PLC based
Specifications
| MODEL | 1500 | 2500 | 4000 | 5000 |
| Hourly Rated Capacity m3/h | 45-50 | 70-80 | 90-100 | 130-135 |
| Capacity per batch m3 | 1 | 1,7 | 2,5 | 3,33 |
| Aggregate bins n° | 4-5 | 4-5 | 4-5 | 4-5 |
| Mixer | Rhyno 1502 | Rhyno 2502 | Rhyno 4002 | Rhyno 5002/MSO 5001 |
| Discharge Height mts | 4.20 | 4,20 | 4,20 | 4,20 |
| Cement Silos n° | up to 4 | up to 4 | up to 4 | up to 4 |
